Take a tour of Flex Modes
Get a richer and more versatile way to explore your data.
Flex Modes provides a set of modes with different functionality to give you more flexibility in the way that you view and analyze your data.

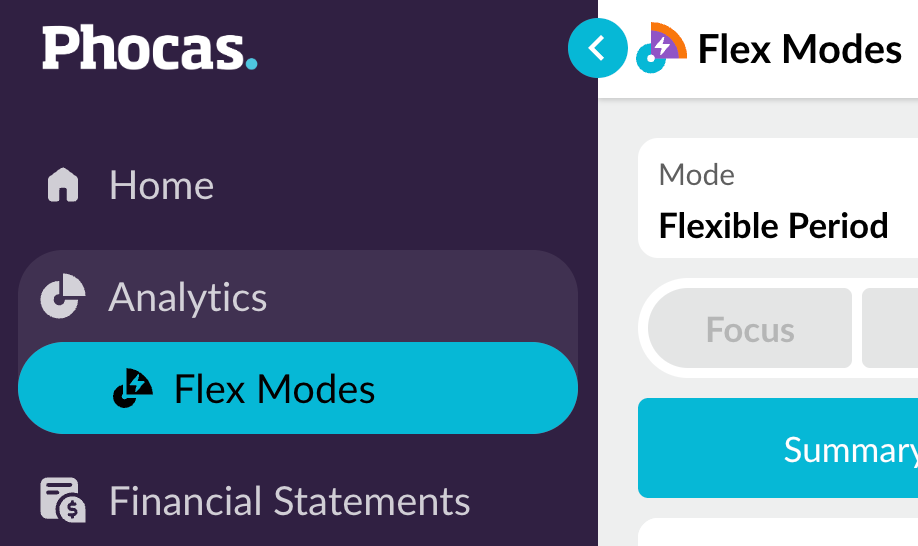

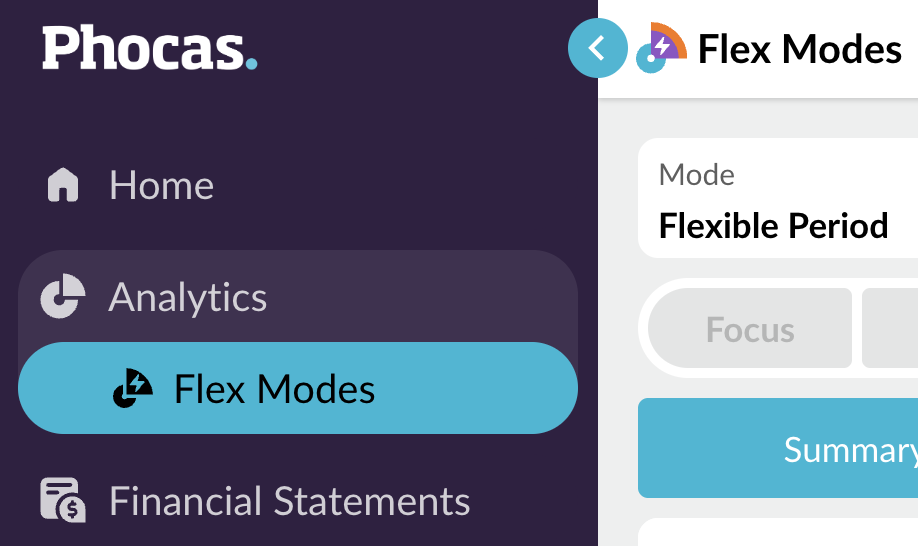

In the navigation menu, click Flex Modes (underneath Analytics), then select the required database. The database opens in Flexible Period mode by default. You can then switch to another Flex mode.

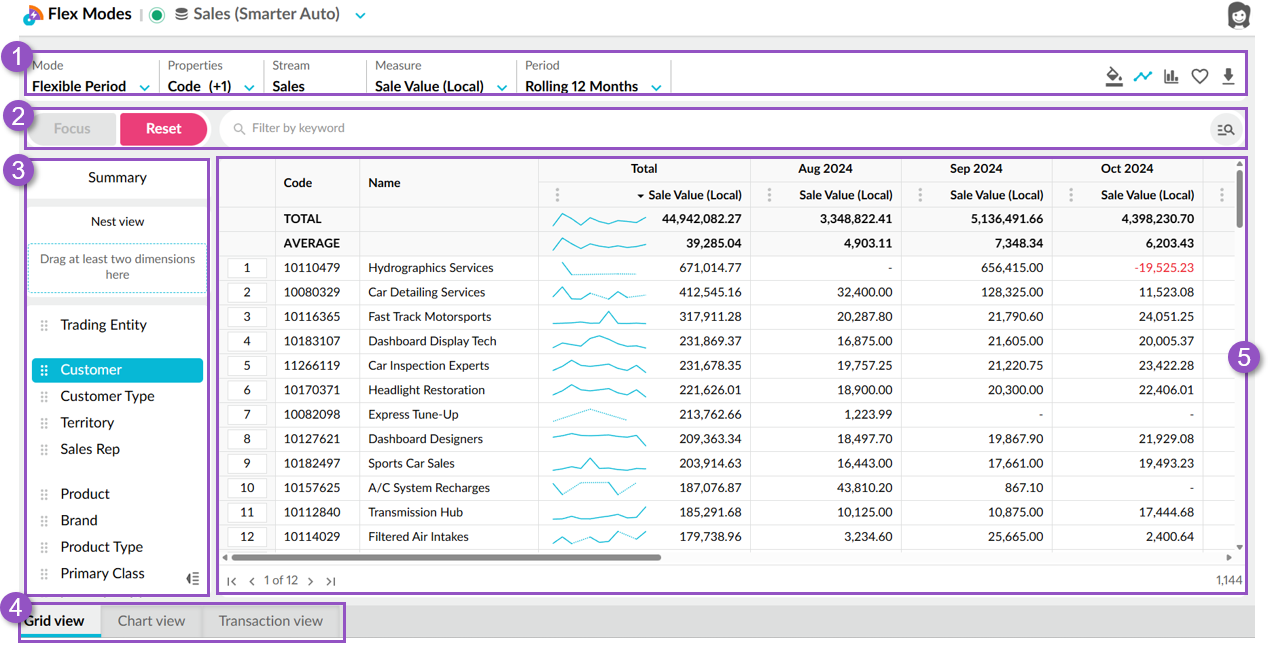

Flex Modes work much like other Analytics modes, with the same basic layout: toolbar on top, dimensions on the left, and the grid in the center. They include many familiar features plus some unique ones. Their five key elements are identified by the numbers in the image and explained below.
1. Toolbar
The toolbar at the top has menus you use to change your view of the data, and some action buttons.
Menus
Each Flex mode has its own set of menus but common menus you'll see are:
Mode: This menu lets you switch between the Flex modes. Each mode is a pre-defined view of data that displays particular columns in the grid.
Properties: This menu lets you change the properties (information stored about a dimension) displayed in the grid. The properties menu isn't available in the Summary view; you must select a dimension first.
Stream: This menu lets you change the stream (series of data in the underlying database) displayed in the grid.
Measure: This menu lets you change the measures (numerical data) displayed in the grid. The Count option allows you to replace the displayed measure value with the relative count of unique entities in a specific dimension.
Period: This menu lets you change the period (timeframe) that applies to the data in the grid.
Action buttons
All of the Flex modes have the following action buttons:
Advanced filter: Build detailed filter rules to focus the grid on the data you want to analyze.
Conditional formatting: Apply color coding to columns in the grid based on the rules you create.
Grid settings: Change the way the grid displays data. The available settings depend on the selected mode.
Save as favorite: Save your analysis as a favorite
Export: Export the data as a CSV file.
Documentation assistant: Ask questions about Flex Modes and get help while you work.
2. Focus and Reset buttons, and filter bar
The Focus button filters the data in the grid and activates after you select a dimension. The Reset button returns the grid to its original state. Use the filter bar for quick keyword searches or to open the Advanced filter pane. Applied filters show as tags on the filter bar’s right-hand side to help you track changes.
When you are working with a calculation column, the filter bar transforms into the fx (formula) bar, making it easy to identify and understand the formulas used to calculate the values in the grid.
3. Dimensions
The panel on the left displays the list of dimensions, as in other modes. However, there are two additional features:
The Nest view feature sits right above the dimensions, making it easy to drag and drop at least two dimensions into the Nest view dropzone to get a nested grid view (with levels you can expand and collapse).
When you have many dimensions, a filter displays above the dimension list to let you quickly find a particular one. Start typing the name of a dimension you're interested in, and the list is instantly filtered to show only the dimensions containing those letters.
4. Tabs

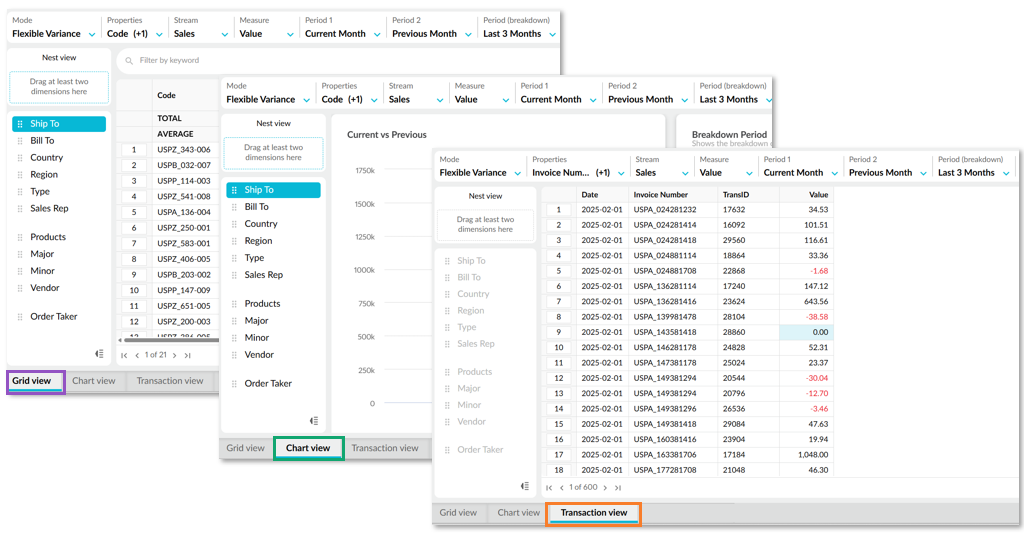

The tabs at the bottom of your screen provide different views of the data. These views mirror each other, so changes you make in one view carry across to the other. The data updates according to the menus, filters, and dimensions you select.
Grid view: This tab opens by default. This is the standard Phocas grid you're familiar with, where you view and analyze your data. For best results, filter and focus on data here before switching to another view.
Transaction view: Click this tab to view the list of transactions that make up the data you see in the Grid view tab. See View transactions.
5. Grid
Just like in other places in Phocas, the grid is where you view and analyze your data. Each Flex mode has its own custom-built grid corresponding to the menus in the toolbar, along with the following features:

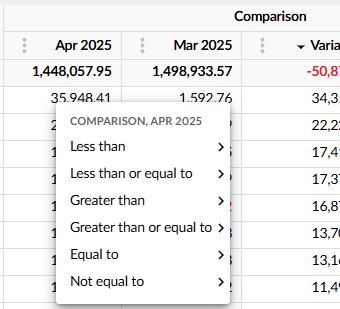

Right-click menu: A context menu that displays when you right-click a cell in a particular column. This is a handy way to do an advanced filter based on a condition directly from the grid.

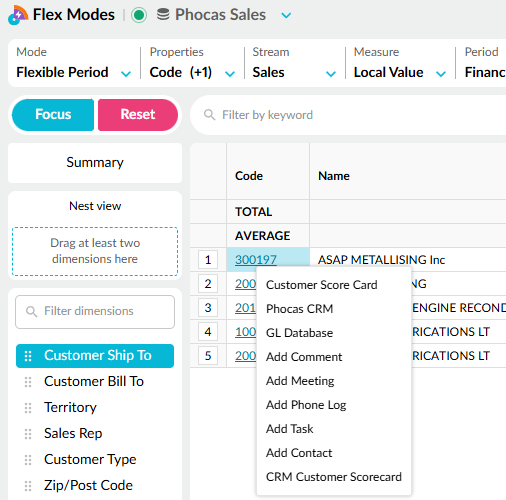

Internal links: Internal shortcut links configured by your administrator that you can use in the Flex Modes grid. For example, you can select a customer to open their scorecard dashboard or create a CRM task.
Sparklines: A column of mini charts amongst the data. Sparklines illustrate the trends over the period in a graphical format, allowing you to identify changes, trends and anomalies at a glance. For example, a sharp decrease in the sparkline might signal a drop in sales, something worth investigating.

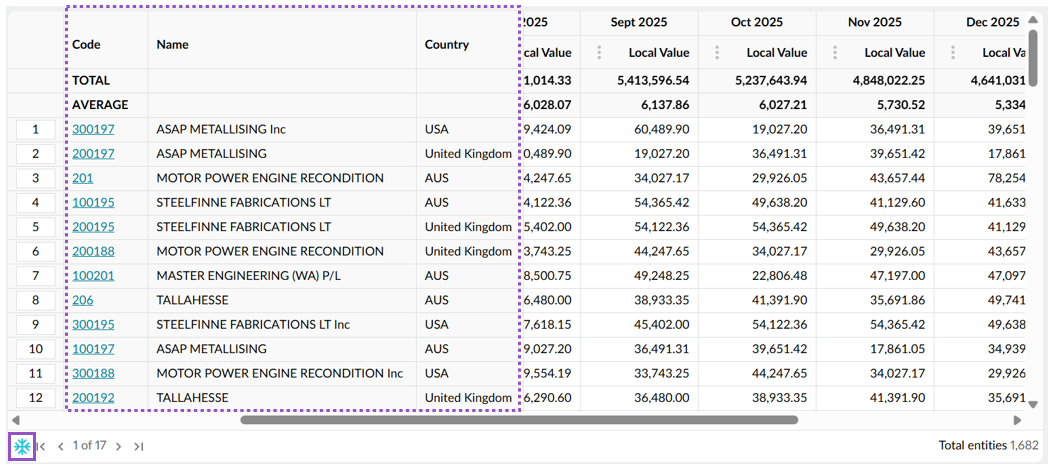

Freeze properties: A setting that keeps selected property columns fixed while you scroll horizontally through measure columns. This helps maintain context (such as Code, Name, or Country) during analysis. All selected property columns are frozen together, and the setup can be saved to a favorite.
Use keyboard shortcuts
Here’s a list of handy keyboard shortcuts you can use in Flex Modes:
Ctrl/Cmd+K
Toggle Command Palette
Ctrl+B
Toggle sidebar (show/hide dimension panel)
F
Focus selection (drill-down into selected rows)
↑ ↓ ← →
Move cell selection
Ctrl/Cmd + Arrow
Jump to edge (first/last row or column)
Home / End
Jump to first / last column
Enter
Move down one row
Shift+Enter
Move up one row
Tab
Move right one column
Shift+Tab
Move left one column
Shift + Arrow
Extend selection
Ctrl/Cmd + Shift + Arrow
Extend selection to edge
Shift+Home / Shift+End
Extend selection to first / last column
Escape
Clear / reset selection
Ctrl/Cmd+C or Ctrl+Insert
Copy selected cells
