  1. Analytics
  2. Customize your view (Analytics)

Change the measures (Analytics)

PreviousChange the properties (Analytics)NextChange the stream

Last updated 3 months ago

Was this helpful?

© Phocas Software

User permission: Query > Change Measures

Measures are different types of numerical data values that are displayed in the grid. They can be calculated or non-calculated (raw data). Typical measures you might see in a Sales database are listed below. The measures you have might be different from these.

Measure
Data or value displayed
Data source

Value

Value of sales (sales value)

Raw data

Cost

Cost of sales (cost price)

Raw data

Quantity

Quantity of items sold

Raw data

Profit

Profit as a dollar or pound value (Value–Cost).

Calculated

Margin

Margin as a percentage (Profit/Value).

Calculated

Value/Item

Average sales value per item (Value/Quantity)

Calculated

Cost/Item

Average cost per item (Cost/Quantity)

Calculated

Lines

The number of transactions lines imported into the Phocas database

Raw data

In values in the Total row of calculated measures are not actually totaled; the calculation is applied to the total data.

The Measures menu identifies the selected measure. When you first open a database or reset the data during your analysis, the default measure is selected. Typically, in a Sales database, the default measure is Value. If multiple measures are selected, a summary displays. You can hover over the Measures menu to display a tooltip listing all the selected measures.

View measures in Summary view

In Summary view, the values you see in the grid correspond to the default measure, so you can see a summary of that measure (Local Values) across the period. You can switch to a different measure, such as Cost or add multiple measures columns to the grid to view all of those high-level data values.

View measures in a filtered view

When you select a dimension, the grid displays columns for the active properties (such as Code and Name) for that dimension, along with additional columns displaying data for the default measure. The columns that display depend on the selected mode. If you select more than one measure, more columns will display.

In the context of a filtered view, the measures are data values relating to the selected dimension. You can switch to a different measure or add multiple measures to view those additional data values in the grid.

Add and remove measure columns

The Measures menu has a list of all the measures in the database, however, only the measures that contain data are available for selection. Typically, in a Sales stream, all measures are available but if, for example, you switch to a Budget stream, you will see that your choice of measures is limited.

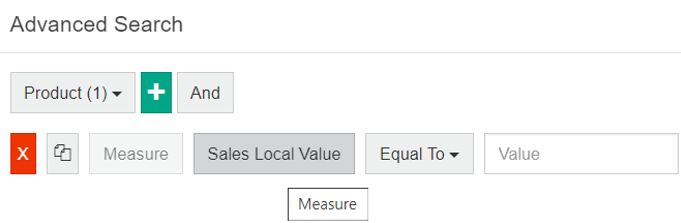

When you are in an advanced search or Custom mode, all measures are available (even if they don't contain any data).

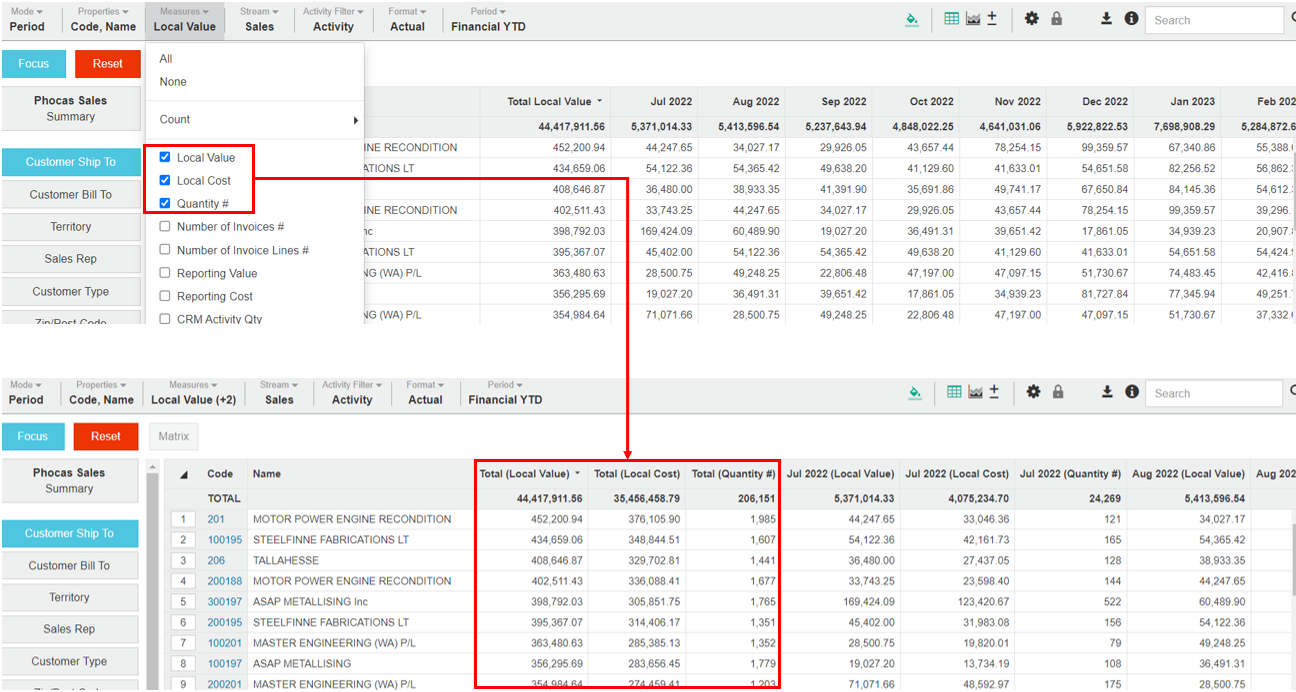

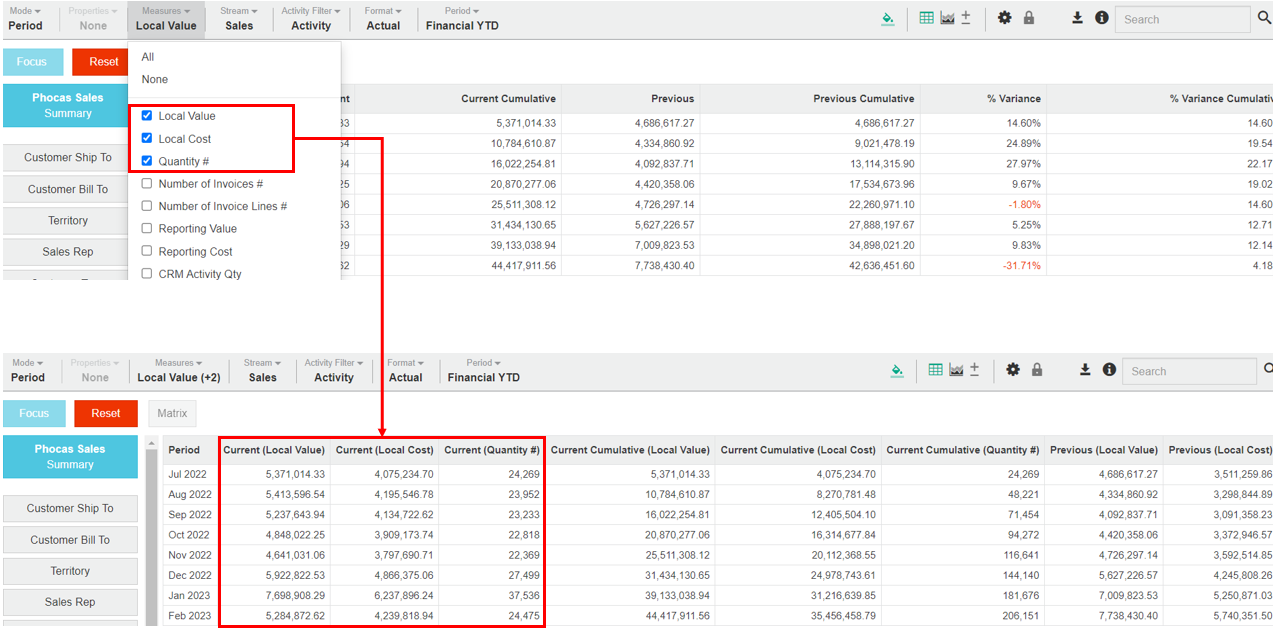

  1. In Summary view or when you have selected a dimension (as applicable), click the Measures menu.

  2. Select the checkboxes of the measures you want to add to the grid and clear the checkboxes of the measures you do NOT want.

  3. Click anywhere outside the Measures menu to update the grid and view the new measures.

To quickly select and apply one measure only, double click that measure in the list.

If you select multiple measures:

  • Some chart types might not be available.

Format a measure

User permission: Query > Format Measures

Click the Measures menu, then click the Formatting option at the bottom of the measures list. In the Measures Formatting window, edit the default format of each measure, as required. You can use a predefined or custom format, as described below. Then click Apply.

The measure formatting is stored in the site database and works across all your devices. The formatting will remain until you change it, even if you log out.

In the image below, compare the default appearance of data in the Local Value column with the customized format of the data in the Local Cost column (it has dollar signs and no decimal places).

Use a predefined format

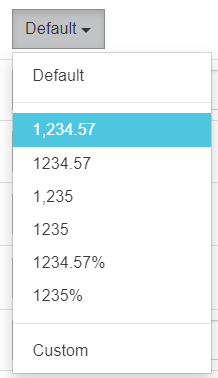

Click the Formatting button (it might say Default or something like 1,234.57) to view your options and select the required format.

Apply a custom format

Click the Formatting button and select the Custom option, then select one of these methods:

  • Manually enter the required format into the box. For example:

    • To remove thousands, enter: #,##0,.00

    • To remove thousands and use K as a descriptor, enter: 0,0,.00,"K"

    • To remove millions, enter: #,##0,,.00

    • To display negative figures in parentheses, enter: #,0.00;(#,0.00);0.00

  • Click the More options button and specify a prefix, suffix and/or number decimal places, and select the separate thousands checkbox, if required, then click Apply.

Hide a measure

By default, all measures are set to Visible, so they display in the list in the Measures menu. You have the option to set a measure as NOT visible, in other words, hide the measure from the list. This option is useful when the database has a lot of measures and therefore, the list of measures is very long but you are only ever interested in some of those measures. You can remove the redundant measures from the list, so you can find the ones you want more easily.

Click the Measures > Formatting and clear (deselect) the Visible checkbox for the measure.

Define a measure

The information in this section relates to other Phocas functions and is referenced by other user documentation pages.

The first thing to be aware of is the Measure button will not say Measure on its label. It will be named differently depending on the default measure set in the database you are in. For example, if you are in a Sales database this button will say something like Sales Local Value. However, when you hover over the button it displays Measure in a tooltip.

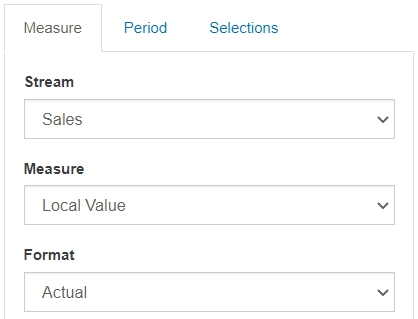

When you click the Measure button, the Measure window displays. This is where you define the measure, using the settings that are organized into three tabs. The combination of these settings determines the value of the measure.

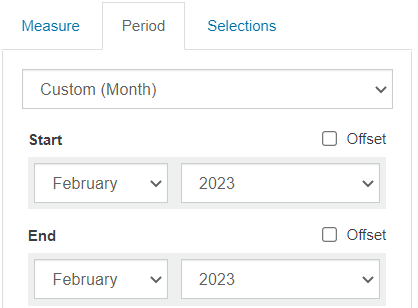

This optional setting allows you to add a time period to a measure. If you skip this option, either the default or active period will apply to your measure.

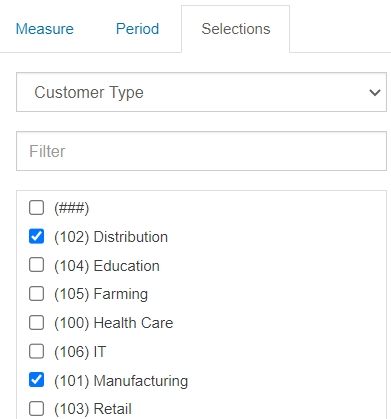

This optional setting allows you to further refine the measure by making additional selections on a dimension to act as a filter for the values being calculated.

Select a dimension, then select the required entities within that dimension.

This setting is particularly important when you are defining a measure in an advanced search based on filtered data, as it ensures you get the expected results.

Add a Count column

The Count feature displays specific count results as another measure column in the grid. Adding a ‘count’ column is simple way to see totals related to a dimension, such as the number of products customers are buying or the number of customers in a region.

The Count feature is available in Total, Period, Variance and Stream modes, when you have selected a dimension.

In the following example, you add count columns to identify how many products were bought by each customer.

  1. Click the Customer dimension.

  2. Click Mode > Total.

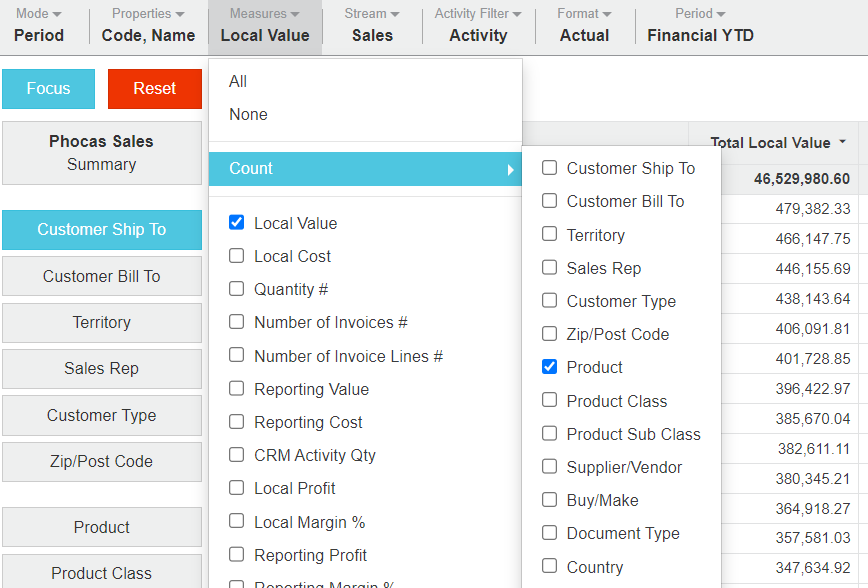

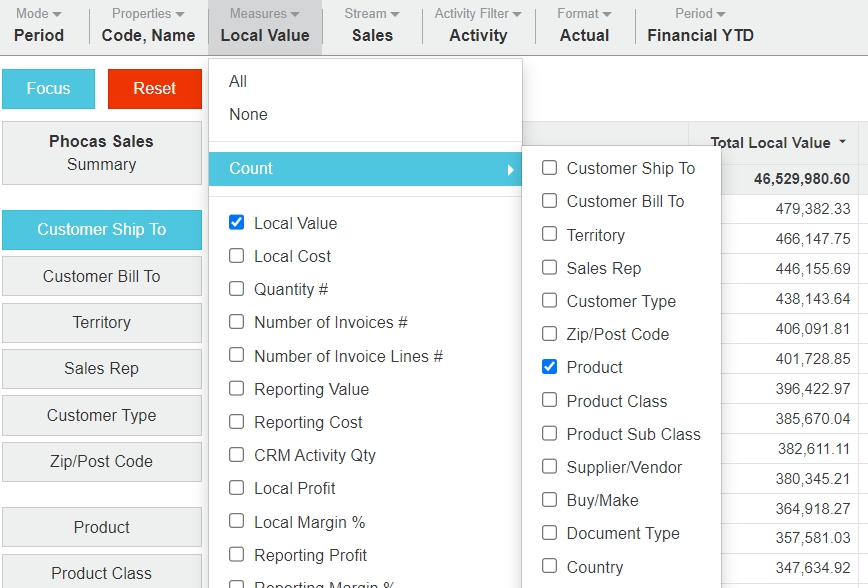

  3. Click Measures > Count and select Product. The options in the Count list are the same as the dimensions that you see down the left-hand side of the grid. This is because Phocas is counting entities within the datasets that make up dimensions.

  4. Click anywhere outside the Measures menu to update the grid and view the new Count column.

  5. (Optional) Visualize the data in a chart or save your view as a favorite.

Limitation: If you add a count widget to a dashboard, you should not make it filterable, as it may not perform as expected.


Troubleshooting: Missing measures

If you are unable to view specific measures in the grid, it might be due to one of these reasons:

  • You hid the measure: Check to see if you hid the measure (and have since forgotten you did so). Alternatively, you might have accidentally hidden it when you were formatting it. See the Hide a measure section above.

The number of columns in the grid increases accordingly, making your view more complex. Use to simplify the view.

By default, the measures display in the format your administrator set in the . You can override this format and customize the appearance of the measures to meet your personal needs. You can select from a list of predefined format options, which include the use of decimal places, thousand separators, and percentage symbols. If none of those options meet your needs exactly, you can create a custom format that can contain a prefix and/or suffix, such as a currency symbol. For example, you might want to remove the thousands to save space in the grid, so 4,000 becomes 4, 57,300 becomes 57.3, and so on.

When you use and create some , you need to define a measure by applying parameters such as time period, stream, format and filter selections.

Select the you want your measure to come from (if available).

Select the . Only the measures in the current database will be displayed.

Select Actual or Daily Average . Apply.

Choose a time unit (month, day, year) from the list of available .

Enter a start date and end date. These can be fixed dates (such as January 2016) or . Apply.

Your user restrictions are preventing you from seeing the measure: Ask your administrator to check your user maintenance settings to ensure that the measure is visible to you. User restrictions override the database default restrictions. Administrators, see .

The default database restrictions are preventing you from seeing the measure. Ask your administrator to check the database’s default restrictions to ensure that the measure is visible. These restrictions apply to all users unless overridden by the user’s individual restrictions. Administrators, see .

Total mode
Designer module
Custom mode
advanced search rules
stream
measure
format
defined periods
offset dates
Manage a user's database access and restrictions
Manage a database's default restrictions
