  1. Analytics
  2. Visualize your data in a chart

Configure the chart options

PreviousMap chartsNextSelect and focus on a chart segment

Last updated 2 months ago

Was this helpful?

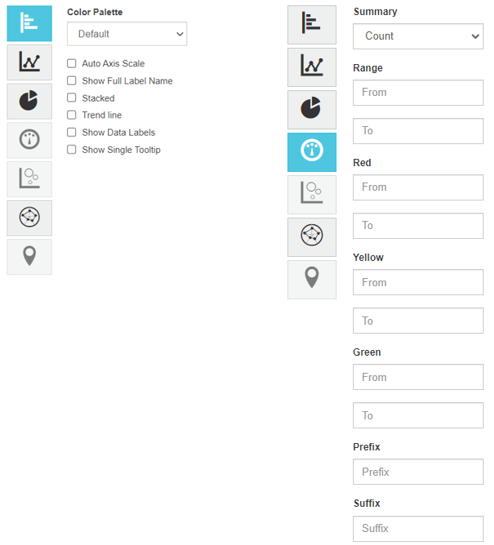

Most of the have configuration settings on the left side that you can use to customize your view of the chart. The available settings depend on the type of chart and might include one or more of the settings listed (in alphabetical order) below.

Watch this Phocas Academy video:

Auto Axis Scale

Charts: Bar, Column, Combo, Waterfall, Line, Area, and Bubble.

Scales the chart based on the values graphed rather than starting at zero. The chart axis starts from the lowest data point in the chart, rather than zero. This starting point creates a more meaningful chart when all values are high.

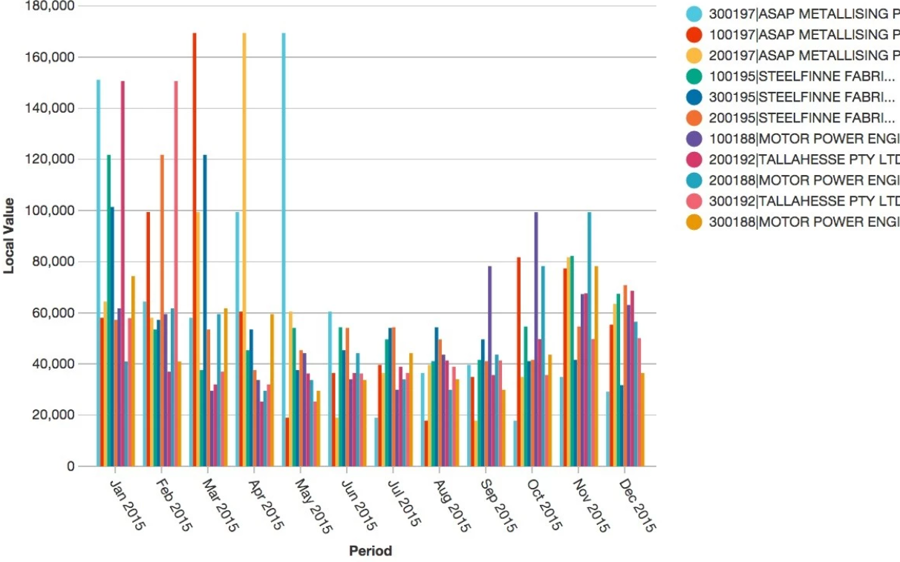

Example - A simple chart with auto axis scale

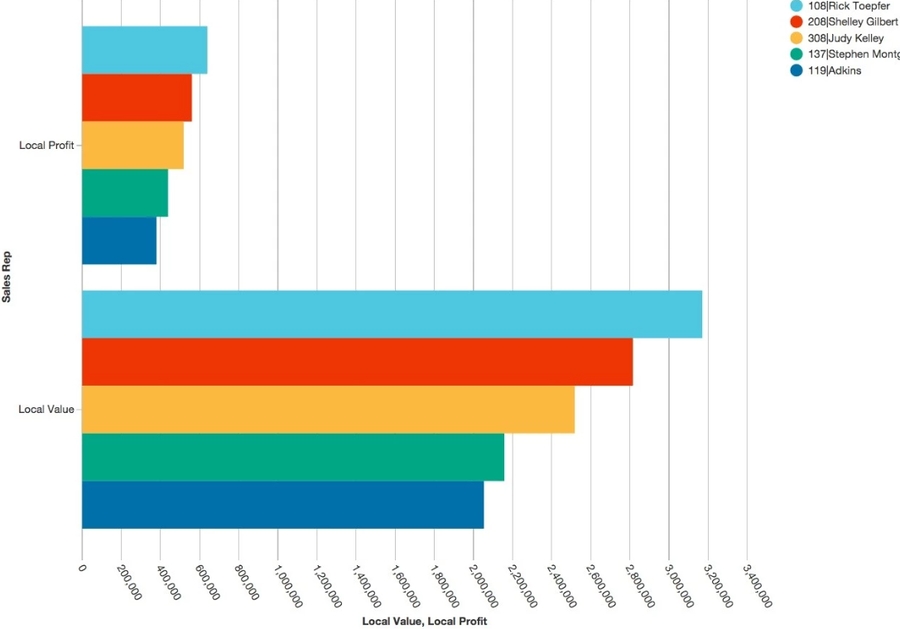

In the image below, the Auto Axis Scale checkbox is NOT selected, therefore, the Y-axis of the chart starts at zero. As a result, the difference between the high values can be difficult to determine.

As you can see in the image below, when the Auto Axis Scale checkbox is selected, the Y-axis of the chart starts at approximately 110,000, the lowest data point in the chart. As a result, it is easier to see the difference in values.

Color Palette

Charts: Bar, Column, Combo, Waterfall, Line, Area, % Area, Pie, Donut, Bubble, and Radar.

Allows you to change the colors in the chart.

Dual Axis Chart

Charts: Bar, Column, Combo, Waterfall, Line, Area and Bubble.

Visually compares two measures with different measurement scales, such as value and margin. Typically, the left Y-axis displays the first measure and the right Y-axis displays the second measure.

Example - Add a second axis to a chart

  1. Select Total mode.

  2. Select two measures.

  3. Switch to the chart view.

  4. Select the Dual Axis checkbox.

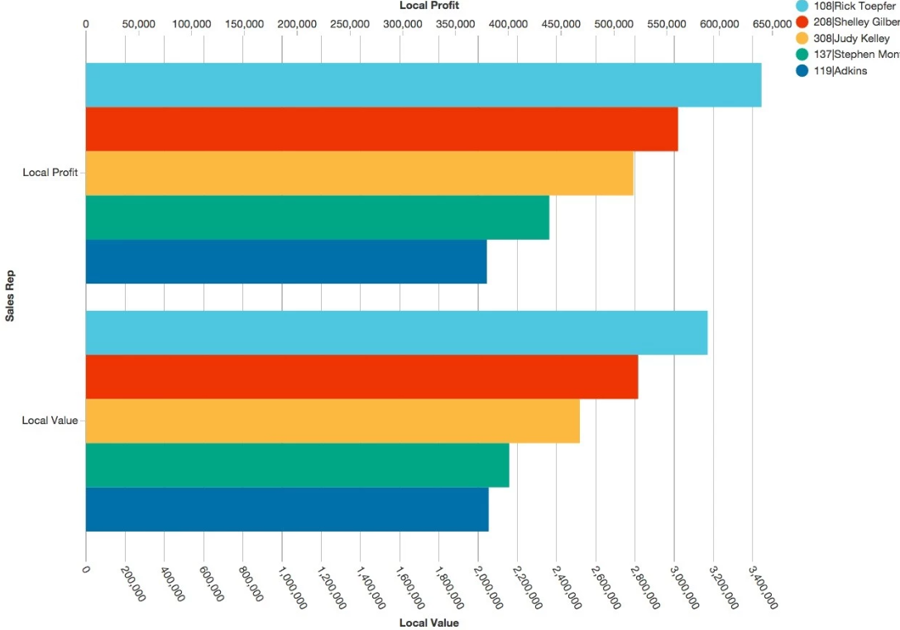

In the image below, the Dual Axis checkbox has been selected to display financial YTD sales value and profit on the same chart for a group of sales reps.

Here is what the chart looks like when the setting is not selected.

Filter by calendar

Chart: Line.

Legend position
Prefix | Suffix

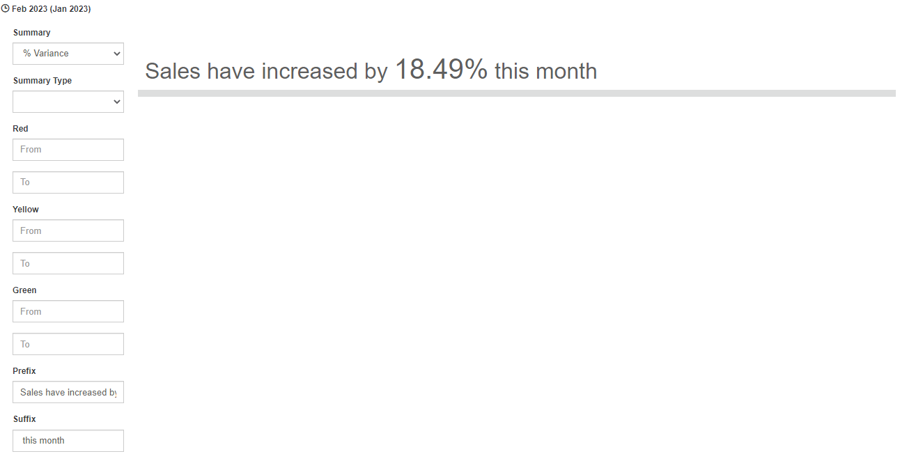

Chart: Summary, Ring Summary.

Descriptive text that displays on the chart, either before or after the number, gives the number more context.

Range

Chart: Gauge.

The lower and upper limits that you want the range to span. The range is 0 and 100 by default, but you can change this.

Red | Yellow | Green

Chart: Summary, Ring Summary and Gauge.

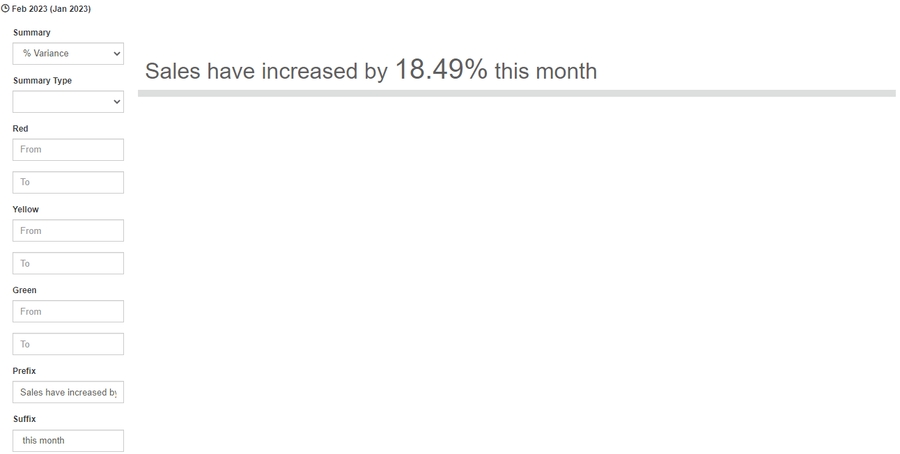

Conditional color coding that you can apply to the chart. By default, there is no color coding applied but you can enter a range for each color.

For example, on a Gauge chart, the pointer might be in the red or yellow zone until a target is met or exceeded, at which point it will be in the green zone. In a Summary chart, the summary might display in red or yellow until a target is met or exceeded, at which point it will turn green.

Show Current/Previous

Chart: Gauge, in Variance and Period Variance mode only.

Displays extra details on the chart. For example, you might want to display the figures behind an improvement or decline in performance.

When this option is selected, the actual and variance or target values are displayed underneath the chart. This is particularly useful on a dashboard, as you can see the figures behind an improvement or decline in performance, without needing to open the widget.

When this option is not selected, you get a basic gauge that displays only the variance amount.

Show Data Labels

Charts: Bar, Column and % Area.

Displays the data point values inside the chart, so you don’t need to hover over the data points to display the values.

Show Full Label Name

Charts: Bar, Column, Combo, Waterfall, Line, Area, % Area, Pie, Donut, Bullet, Bubble, and Radar.

Useful when the legend title has long text, as you can opt to display the full text or not.

Show Single Tooltip

Charts: Bar, Column and % Area.

Displays only one tooltip at a time when you hover over a data point in the chart. This is a good feature if you want to focus on a single data point and view more details about a single value.

Stacked

Charts: Bar, Column and Radar.

Depicts the values stacked on top of each other rather than side by side. Groups all selected dimensions into a single bar.

Example - View percentage split for products

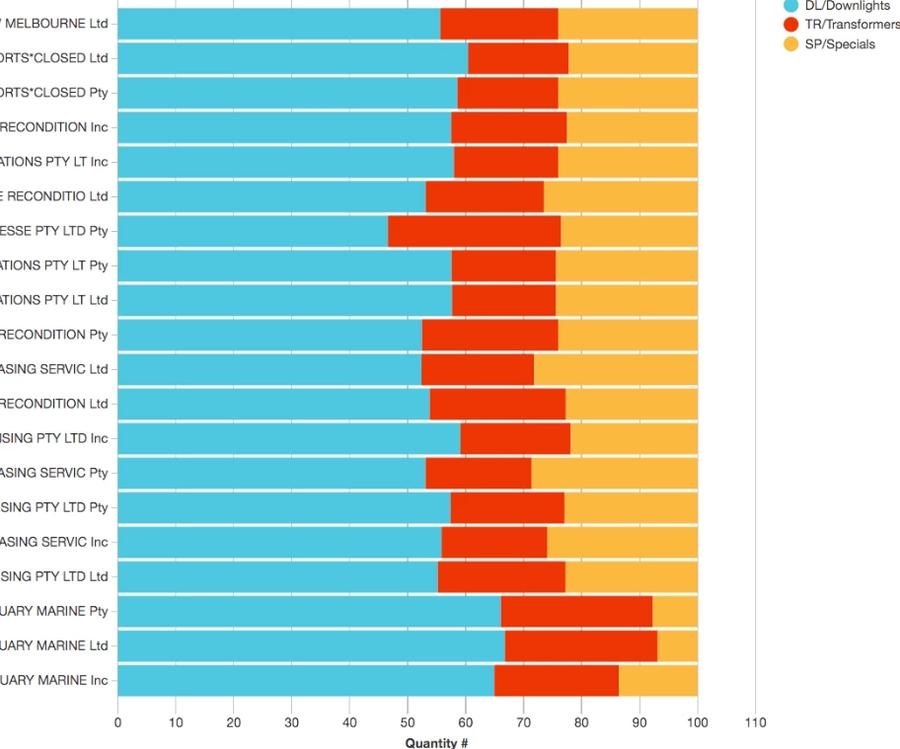

The stacked option is particularly useful when viewing a matrix share. In the image below the Stacked checkbox has been selected. As a result, you can see the percentage split for products in three categories is displayed on top of each other.

Straight Line

Chart: Radar only.

Renders the lines between each point as straight rather than curved.

Summary

Chart: Summary, Ring Summary and Gauge.

The type of result that you want to appear in the chart. The options that are available in the Summary menu depend on the selected mode and other settings but the full list is as follows:

  • Count: Total number of focused items.

  • Sum: Total of the first non-property column (unless margin or other percentage measure is selected, and then average is used).

  • Average: Sum divided by count. Average data does not need to display in your grid; it will be calculated and charted automatically.

  • Minimum: Minimum value in the first non-property column.

  • Maximum: Maximum value in the first non-property column.

  • Current: Total of the 'Current' columns (only in Variance mode).

  • Previous: Total of the 'Previous' columns (only in Variance mode).

  • Stream: Value of the 'Stream' column (only in Stream mode).

  • Variance: Total variance.

  • % Variance: Total percentage variance.

  • Limit Rows: Filters the records to either the 'top 10' or 'bottom 10' records.

If you are creating a Gauge or Summary widget from the dashboard and you have selected the Limit Rows option, then Count will be the only option available in the Summary menu.

Summary Type

Chart: Summary, Ring Summary.

Adds visual elements to the chart which are used alongside the conditional color coding you apply. You can select from the following options:

Smiley

Traffic Lights

Emojis

Arrows

Trend Line

Charts: Bar, Column, Line, and Area.

Superimposes a line on a chart revealing the overall direction of the data. Depicts a momentum indicator for each series.

Example - View trends in product sales

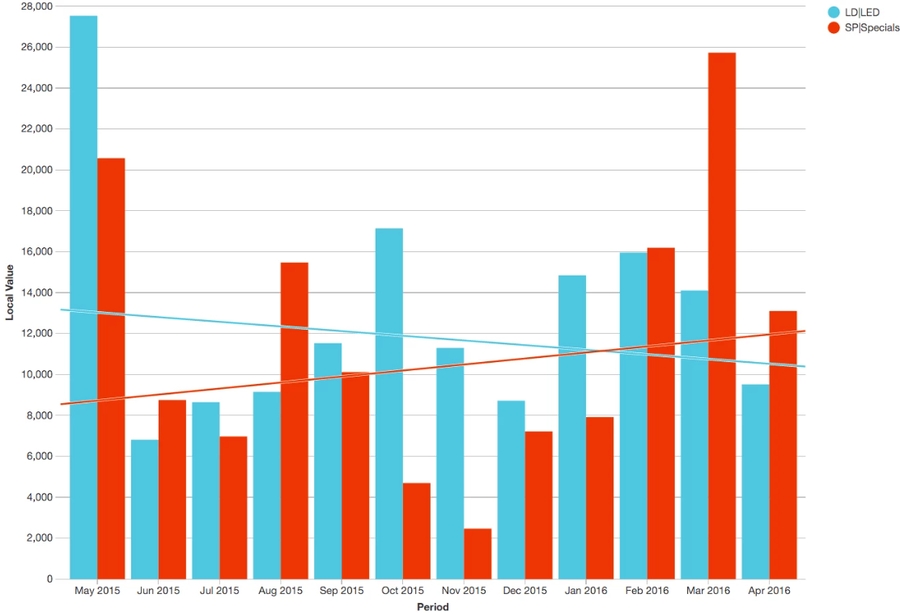

In the image below, the Trend Line checkbox has been selected. As a result, the trendline shows the general direction of sales for two product classes over a rolling 12-month period.

Use Cumulative

Chart: Combo, Line and Area (each in Summary view only).

Charts the accumulated total rather than individual values. In other words, rather than charting current vs. previous for each time unit, Phocas charts current cumulative vs. previous cumulative for each time unit.

Example - View cumulative data

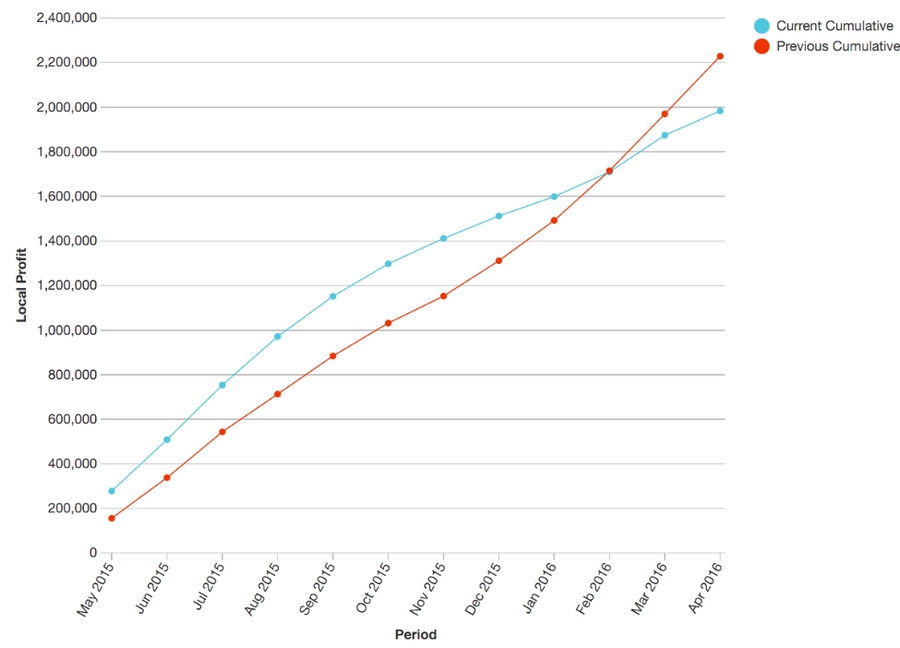

In the following image, the Use Cumulative checkbox is selected and as a result, the accumulated total value is displayed for each month.

Use Totals

Chart: All charts in a focused view, in Period mode.

Charts the sum rather than individual values. Summarises period values into a single bar. In other words, the total for each period is charted rather than all focused items.

Example - Simplify a chart by showing totals only

A Column chart was created based on 11 focused customers over 12 months. The Use Total checkbox is NOT selected and as a result, the customers are each shown as different colored bars in each month.

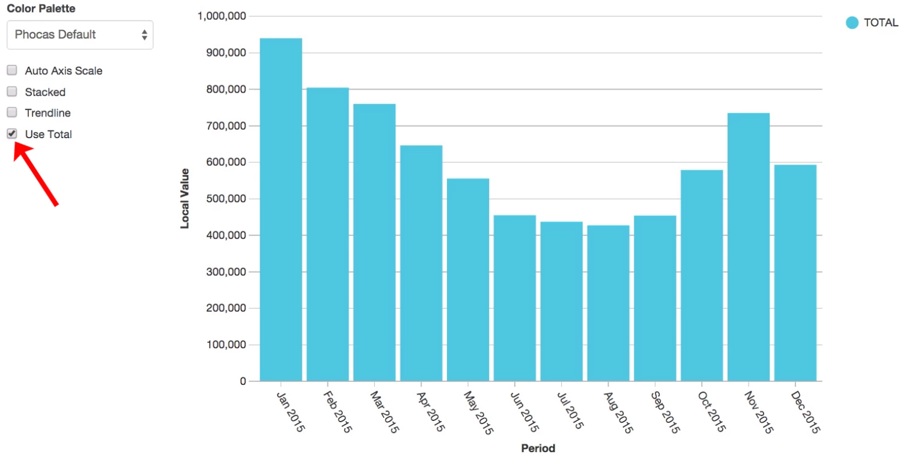

When the Use Total checkbox is selected, the combined total monthly value of the 11 customers is represented by a single bar for each month.

Applicable only when you select a day type of period from the Period menu, allows you to apply a working day calendar to the data in the chart to remove data for non-working days. See .

Options for repositioning the legend or hiding the chart from view. See .

If you are saving the chart as an alert, to ensure that the alert updates, select a defined period (a period containing ).

Use the chart legend
offset dates
chart types
Use the chart options
Create a line chart that displays data for working days only
